24V 50Ah Cycle Life >4000 cycles @1C 80%DOD Lithium iron Phosphate LiFePO4 Battery

Model:

LFP50-24 (LCD-Customizable)

Rated Voltage (V):

24V 25.6V

Rated Capacity (Ah):

Supply Ability:

500000 Pieces per Month

MOQ:

Payment:

L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal

Approx Dimension (mm):

330*171*214*220

Certificate:

ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on

Please:

click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.

Inquiry

Write a Review

24V 50Ah Cycle Life >4000 cycles @1C 80%DOD Lithium iron Phosphate LiFePO4 Battery 7

Electrical Characteristics	Nominal Voltage	25.6V (24V)
	Nominal Capacity	50Ah
	Energy	1280Wh
	Internal Resistance	≤200mΩ
	Cycle Life	>4000 cycles
	Months Self Discharge	<3%
	Efficiency of Charge	100% @0.5C
	Efficiency of Discharge	96~99% @1C
Standard Charge	Charge Voltage	29.2±0.2V
	Charge Mode	0.2C to 29.2V, then 29.2V,charge current to 0.02C (CC/CV)
	Charger Current	45A
	Max. Charge Current	50A
	Charge Cut-off Voltage	31.2V±0.2V
Standard Discharge	Continuous Current	50A
	Max. Pulse Current	100A(<10s)
	Discharge Cut-off Voltage	20V
Environmental	Charge Temperature	0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
	Discharge Temperature	-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
	Storage Temperature	0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
	Water Dust Resistance	IP55

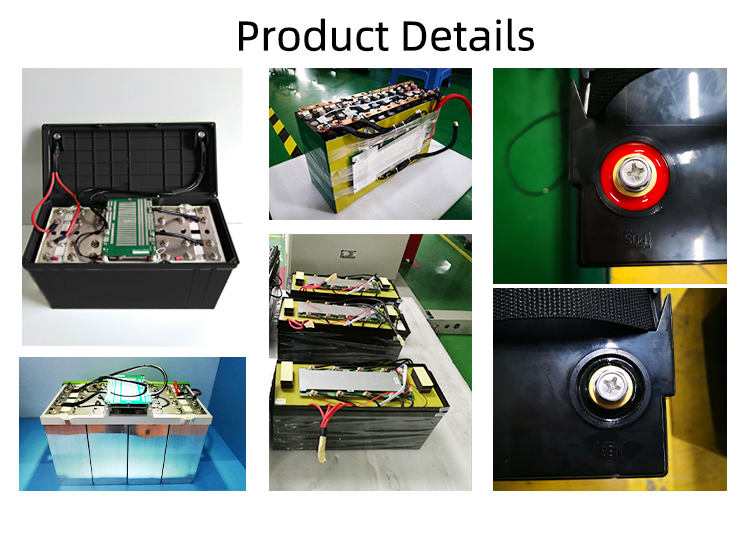

Mechanical	Cell & Method	3.2V25Ah 8S2P
	Plastic Case	ABS
	Dimensions (in./mm.)	330173220mm
	Weight (lbs./kg.)	13.5kg
	Terminal	/
	Protocol (optional)	/
	SOC (optional)	/

24V 50Ah Cycle Life >4000 cycles @1C 80%DOD Lithium iron Phosphate LiFePO4 Battery 8

24V 50Ah Cycle Life >4000 cycles @1C 80%DOD Lithium iron Phosphate LiFePO4 Battery 9

24V 50Ah Cycle Life >4000 cycles @1C 80%DOD Lithium iron Phosphate LiFePO4 Battery 10

24V 50Ah Cycle Life >4000 cycles @1C 80%DOD Lithium iron Phosphate LiFePO4 Battery 11

24V 50Ah Cycle Life >4000 cycles @1C 80%DOD Lithium iron Phosphate LiFePO4 Battery 12

24V 50Ah Cycle Life >4000 cycles @1C 80%DOD Lithium iron Phosphate LiFePO4 Battery 13

24V 50Ah Cycle Life >4000 cycles @1C 80%DOD Lithium iron Phosphate LiFePO4 Battery 14

24V 50Ah Cycle Life >4000 cycles @1C 80%DOD Lithium iron Phosphate LiFePO4 Battery 15

24V 50Ah Cycle Life >4000 cycles @1C 80%DOD Lithium iron Phosphate LiFePO4 Battery 16

24V 50Ah Cycle Life >4000 cycles @1C 80%DOD Lithium iron Phosphate LiFePO4 Battery 17

24V 50Ah Cycle Life >4000 cycles @1C 80%DOD Lithium iron Phosphate LiFePO4 Battery 18

MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.

MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:

1. The global optimum acquisition price for any required hardware

2. Installation considerations

3. Ongoing support options

Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
