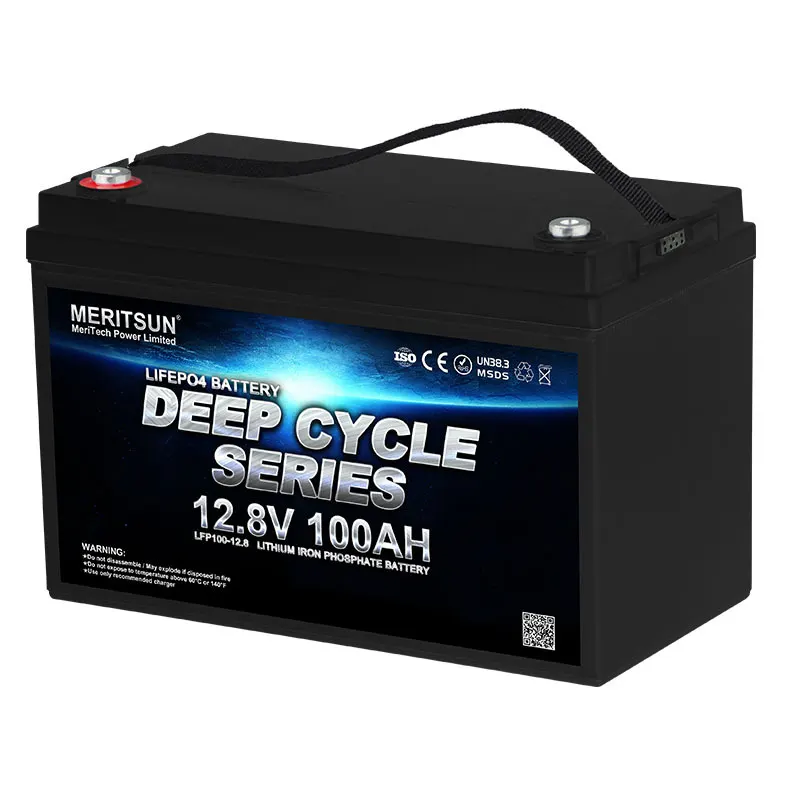

MERITSUN, the Best Lithium Energy Solution Provider.
Electrica Characteristics | Nominal Voltage | 12V/12.8V |
Nominal Capacity | 100Ah | |
Nominal Energy | 1280Wh | |
Internal Resistance | ≤40mΩ | |
Cycle Life | ≥4000 cycles @1C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
Charger Current | 50A | |
Max. Charge Current | 100A | |
Charge Cut-off Voltage | 15.6V±0.2V | |
Standard Discharge | Continuous Current | 100A |
Max. Pulse Current | 300A(<10s) | |
Discharge Cut-off Voltage | 10.5V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP56 | |
Mechanical | Cell & Method | 26650 4S36P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 330*175*215mm/Customized | |
Weight (lbs./kg.) | 11kg (29.983 lbs) | |
Terminal | T11 | |
Protocol (optional) | SMBus/RS485/RS232 | |
SOC (optional) | LED |
The Company info with regard to Factory Supply Rechargeable LiFePO4 12V 100Ah Lithium ion iron Phosphate Battery
MERITSUN (JYC Battery Group) With a one of the largest battery manufacturing centers in China, finely tuned for efficiency, strong innovation capability from our R&D team, ISO standard manufacturing processes, effective management, and the awareness of being an industry leader in the supplier of batteries.
JYC&MERITSUN is a leading manufacturer and exporter of Battery.
Our advanced and professional technology, complete production lines, experienced staff and strict corporate system ensure our products quality. We pride ourselves on quality products, service and pricing, and believe that the three aspects are equally important to ensure the long-term success of overseas purchasing program.
1. An excellent team which is experienced with market and has strong techni-cal capability to customize cost effective.
2. Cleaner production enterprise in China.
3. OEM/ODM services backed by nearly 20 years' R&D experience.
