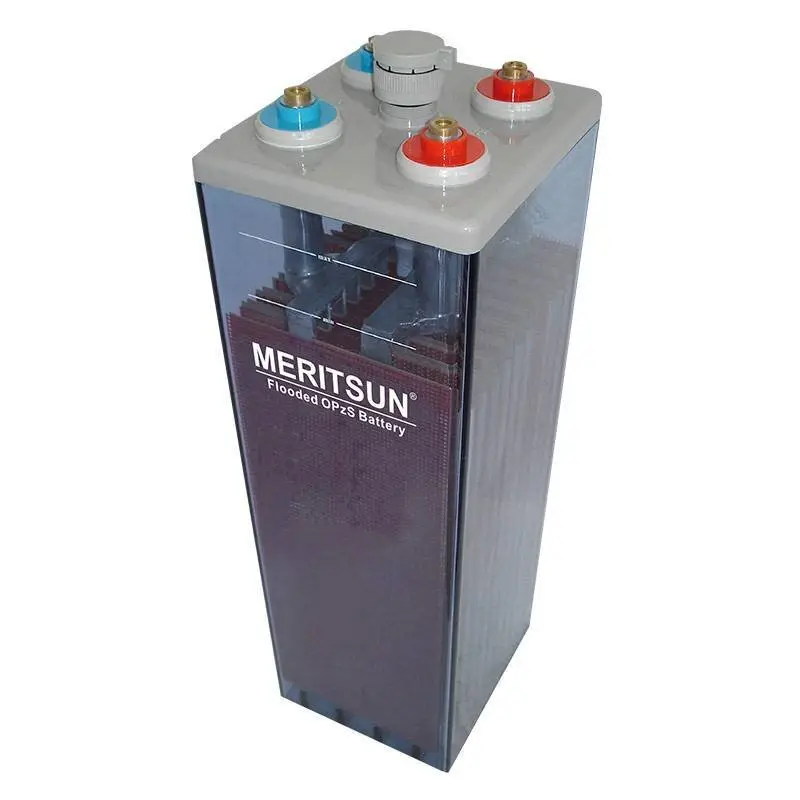

Flooded - OPzS Battery
❈ Product Features
★ General Features：
◪1. Lower self discharge.
◪2. Higher thermal capacity, No thermal runaway will occur
◪3. Superior deep cycle performance.
◪4. Wide operation temperature range.
◪5. Long service life, designed life 15-20 years.
❈ Typical Applications
| Telecommunications | Buoy lighting | Radio and cellular telephone relay stations |
| Emergency lighting systems | Railway signalling | Large UPS and computer back-up |
| alternative power (solar, wind) | Standby power | Maritime standby power on ships and ashore |
| Power stations, Conventional power stations | ||
❈ Product Specification
Type | Model | Rated Voltage | Rated Capacity | Approx Dimension (mm/in) | Approx | ||||||||
Length | Width | Height | Total Height | ||||||||||
mm | in | mm | in | mm | in | mm | in | Kg | lbs | ||||
2V | OPzS100-2 | 2 | 100 | 103 | 4.06 | 206 | 8.11 | 355 | 13.98 | 410 | 16.14 | 8.1 | 17.9 |
OPzS150-2 | 2 | 150 | 103 | 4.06 | 206 | 8.11 | 355 | 13.98 | 410 | 16.14 | 10.8 | 23.8 | |
OPzS200-2 | 2 | 200 | 103 | 4.06 | 206 | 8.11 | 355 | 13.98 | 410 | 16.14 | 12.9 | 28.4 | |
OPzS250-2 | 2 | 250 | 124 | 4.88 | 206 | 8.11 | 355 | 13.98 | 410 | 16.14 | 15.4 | 33.9 | |
OPzS300-2 | 2 | 300 | 145 | 5.71 | 206 | 8.11 | 355 | 13.98 | 410 | 16.14 | 18.5 | 40.8 | |
OPzS350-2 | 2 | 350 | 124 | 4.88 | 206 | 8.11 | 471 | 18.54 | 526 | 20.71 | 21.0 | 46.3 | |
OPzS420-2 | 2 | 420 | 145 | 5.71 | 206 | 8.11 | 471 | 18.54 | 526 | 20.71 | 24.5 | 54.0 | |
OPzS490-2 | 2 | 490 | 166 | 6.54 | 206 | 8.11 | 471 | 18.54 | 526 | 20.71 | 28.0 | 61.7 | |
OPzS600-2 | 2 | 600 | 145 | 5.71 | 206 | 8.11 | 646 | 25.43 | 701 | 27.6 | 33.4 | 73.6 | |
OPzS800-2 | 2 | 800 | 191 | 7.52 | 210 | 8.27 | 646 | 25.43 | 701 | 27.6 | 47.0 | 103.6 | |
OPzS1000-2 | 2 | 1000 | 233 | 9.17 | 210 | 8.27 | 646 | 25.43 | 701 | 27.6 | 57.0 | 125.7 | |
OPzS1200-2 | 2 | 1200 | 275 | 10.83 | 210 | 8.27 | 646 | 25.43 | 701 | 27.6 | 67.5 | 148.8 | |
OPzS1500-2 | 2 | 1500 | 275 | 10.83 | 210 | 8.27 | 796 | 31.34 | 851 | 33.5 | 83.5 | 184.1 | |
OPzS2000-2 | 2 | 2000 | 399 | 15.71 | 214 | 8.42 | 772 | 30.39 | 827 | 32.56 | 110.0 | 242.6 | |
OPzS2500-2 | 2 | 2500 | 487 | 19.17 | 212 | 8.35 | 772 | 30.39 | 827 | 32.56 | 139.0 | 306.5 | |
OPzS3000-2 | 2 | 3000 | 576 | 22.68 | 212 | 8.35 | 772 | 30.39 | 827 | 32.56 | 164.5 | 362.7 | |
6V | OPzS200-6 | 6 | 200 | 272 | 10.7 | 205 | 8.07 | 337 | 13.27 | 384 | 15.12 | 35.0 | 77.2 |
OPzS250-6 | 6 | 250 | 381 | 15.0 | 205 | 8.07 | 337 | 13.27 | 384 | 15.12 | 45.0 | 99.2 | |
OPzS300-6 | 6 | 300 | 381 | 15.0 | 205 | 8.07 | 337 | 13.27 | 384 | 15.12 | 49.9 | 110.1 | |
12V | OPzS50-12 | 12 | 50 | 272 | 10.7 | 205 | 8.07 | 337 | 13.27 | 384 | 15.12 | 28.2 | 62.2 |
OPzS100-12 | 12 | 100 | 272 | 10.7 | 205 | 8.07 | 337 | 13.27 | 384 | 15.12 | 38.5 | 84.9 | |
OPzS150-12 | 12 | 150 | 381 | 15.0 | 205 | 8.07 | 337 | 13.27 | 384 | 15.12 | 53.0 | 117.0 | |
★ Specification subject to change without prior notice.
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
