Front Terminal Battery
❈ Product Features
★ General Features：
◪1. Specifically ideal for 19 inch or 23 inch power cabinets
◪2. Front terminals make the installation, maintenance and supervision easy
◪3. Shield designs protect terminals from short circuit and show good appearance
◪4. Unique vent valve design: reduce water losing and prevent air/spark going inside
◪5. Thick plates, special formula of paste and plate making process for a long service life
◪6. ABS material: increase the strength of battery container (Flame-retardant ABS is optional)
❈ Typical Applications
| For standard 19 inch or 23 inch power cabinets | Power station systems | UPS, standby power supply |
| Network connection equipment of communication system | Power system of special network or local area network | |
❈ Product Specification
Model | Rated Voltage (V) | Rated Capacity (Ah) | Approx Dimension | Approx Weight | Terminal Type | ||||||||
Length | Width | Height | Total Height | ||||||||||
mm | inch | mm | inch | mm | inch | mm | inch | kg | lbs | ||||
GF40-12 | 12 | 40 | 274 | 10.79 | 105 | 4.13 | 220 | 8.66 | 220 | 8.66 | 13.0 | 28.7 | T6 |
GF50-12 | 12 | 50 | 390 | 15.35 | 107 | 4.21 | 200 | 7.87 | 200 | 7.87 | 18.5 | 40.8 | T6 |
GF70-12 | 12 | 70 | 564 | 22.20 | 114 | 4.49 | 187 | 7.36 | 187 | 7.36 | 25.0 | 55.1 | T6 |
GF75-12 | 12 | 75 | 564 | 22.20 | 114 | 4.49 | 187 | 7.36 | 187 | 7.36 | 26.0 | 57.3 | T6 |
GF90-12 | 12 | 90 | 508 | 20.00 | 110 | 4.33 | 239 | 9.41 | 239 | 9.41 | 31.0 | 68.3 | T13 |
GF92-12 | 12 | 92 | 396 | 15.59 | 111 | 4.37 | 285 | 11.22 | 285 | 11.22 | 29.5 | 65.0 | T6 |

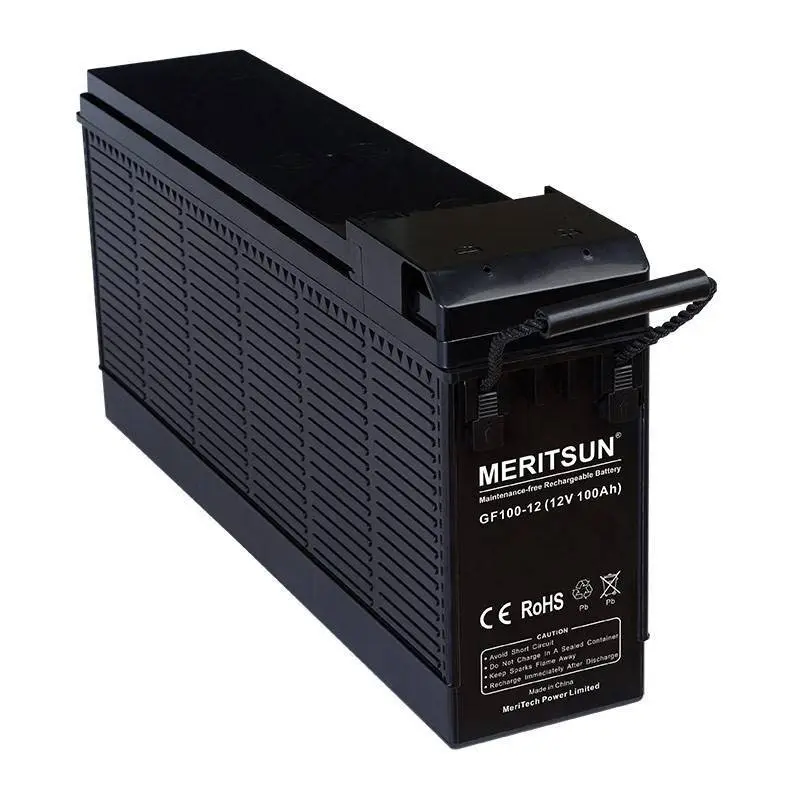

GF100-12A | 12 | 100 | 396 | 15.59 | 111 | 4.37 | 285 | 11.22 | 285 | 11.22 | 33.0 | 72.8 | T6 |
GF100-12B | 12 | 100 | 520 | 20.47 | 107 | 4.21 | 263 | 10.35 | 263 | 10.35 | 33.0 | 72.8 | T6 |
GF120-12 | 12 | 120 | 520 | 20.47 | 107 | 4.21 | 263 | 10.35 | 263 | 10.35 | 39.5 | 87.1 | T6 |
GF125-12 | 12 | 125 | 551 | 21.69 | 110 | 4.33 | 287 | 11.30 | 287 | 11.30 | 40.5 | 89.3 | T6 |
GF150-12 | 12 | 150 | 558 | 21.97 | 125 | 4.92 | 283 | 11.14 | 283 | 11.14 | 48.0 | 105.8 | T6 |
GF180-12 | 12 | 180 | 561 | 22.09 | 125 | 4.92 | 316 | 12.44 | 316 | 12.44 | 52.0 | 114.6 | T6 |
GF200-12 | 12 | 200 | 550 | 21.65 | 125 | 4.92 | 330 | 12.99 | 330 | 12.99 | 62.0 | 136.7 | T6 |
★ Specification subject to change without prior notice.
