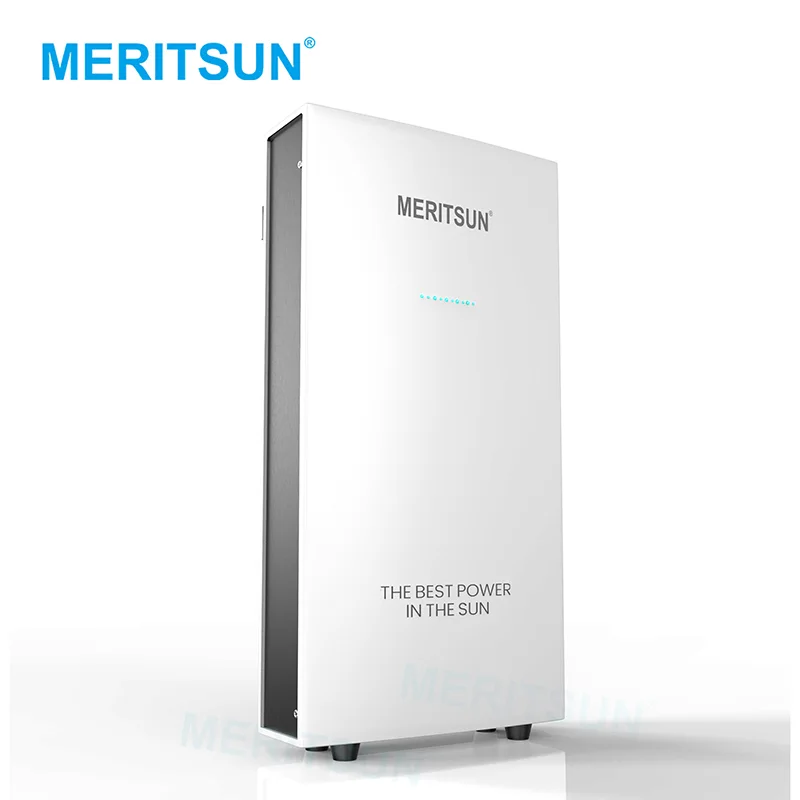

MeritSun Patented technology MeritSun power storage battery solar energy System built in inverter and Lithium battery
Patented technology MeritSun power storage battery solar energy System built in
5.0
Model:
5KWh
Rated Voltage (V):
48V
Rated Capacity (Ah):
100Ah
Supply Ability:
50000 Piece/Pieces per Month
MOQ:
1
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
698*220*1275mm
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Specifications | |||
| Model | M5000E (5kw/5kwh) | M10000E (5kw/10kwh) | |
| Solar Charger Data | Max. Recommended PV Power | 4500W | |
| Max. PV open Circuit Voltage | 145Vdc | ||
| MPPT Voltage Range | 60-115Vdc | ||
| MAx. Solar Charge Current | 80A | ||
| MAx. MPPT Efficiency | 98% | ||
| AC Charger Data | Normal Voltage | 230Vac | |
| AC Voltage Range | 180-270Vac | ||
| Frequency Range | 50/60Hz | ||
| MAx. Charge Current | 60A | ||
| UPS AC Data | Normal Output Power | 5000W | |
| Normal Output Frequency | 50/60Hz | ||
| Normal Output Voltage | 230V (±5%) | ||
| Efficiency | 90% | ||
| Battery Data | Battery Type | Lithium Iron Phosphate (LiFePO4) | |
| Normal Voltage | 48V | ||
| Max. Charge Current | 60A | ||
| Max. Discharge Current | 100A | ||
| Battery Capacity | 100Ah | 200Ah | |
| General Data | Cooling Method | Air Cooling | |
| Communication Mode | RS485, WIFI, CAN-BUS | ||
| Relative Humidity | 10%-90%, no condensation | ||
| Display Mode | LED/APP | ||
| Dimension(W/H/D) | 698*220*1275mm | 698*220*1638mm | |
