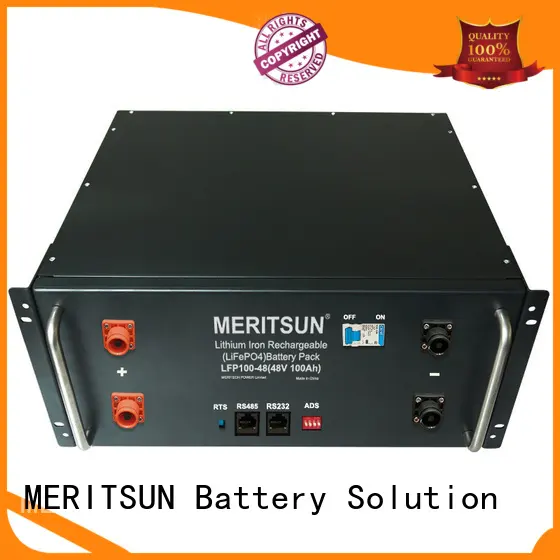

solar storage battery systems manufacturing for residential
Model:
LFP100-48
Rated Voltage (V):
48V
Rated Capacity (Ah):
100AH
Supply Ability:
5000 Pieces per Month
MOQ:
1
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
442*410*220mm
Approx Weight (Kg):
60kg
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Product Details
With a focus on quality, Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system. pays great attention to the details of battery energy storage system. battery energy storage system is a truly cost-effective product. It is processed in strict accordance with relevant industry standards and is up to the national quality control standards. The quality is guaranteed and the price is really favorable.
1. When creating a design for MERITSUN residential energy storage , one of the interacting components is the design element. Its design elements and principles are flexible and can be explained in the current fashion context.
2. The product is of flexibility. Unlike some batteries which need to be placed in the upright position, it can operate in any position and offer good impact tolerance.
3. The product is not prone to blast. It will not have spontaneous combustion or burning even it's squeezed, dropped, and shocked.
4. MeriTech Power Co.,Ltd. is able to meet the needs of different customers and new storage battery systems product development.
5. MeriTech Power Co.,Ltd. has rich intellectual resources and wealth of knowledge, strong scientific research capabilities and talented people.
| Model | LFP50-48 | LFP100-48 | LFP200-48 |
| Nominal Voltage(V) | 48 | 48 | 48 |
| Nominal Capacity(Ah) | 50 | 50 | 50 |
| Usable Capacity(Wh) | 2400 | 4800 | 9600 |
| Dimension(mm) | 442*385*132 customizabl | 442*410*220 customizabl | 442*450*250 customizabl |
| Weight(Kg) | 29 | 44 | 86 |
| Cycle Life | 4000~6000，25℃ | 4000~6000，25℃ | 4000~6000，25℃ |
| Communication Port | RS232，RS485，CAN | RS232，RS485，CAN | RS232，RS485，CAN |
| Working Temperature ℃ | 0~55 | 0~55 | 0~55 |
| Discharge Voltage (V) | 39~40.5 | 40.5~42.5 | 40.5~42.5 |
| Charge Voltage(V) | 53.2~54 | 53.2~54 | 53.2~54 |
| Internal Impedance(mΩ) | ≥50 | ≥50 | ≥50 |
| Charge / Discharge Current (A) | 10（Recommended） | 20（Recommended） | 40（Recommended） |
| 50（MAX） | 100（MAX） | 100（MAX） | |
| Design Life(Years) | 12 | 12 | 12 |
Company Features
1. MeriTech Power Co.,Ltd. is an export production base for storage battery systems , has large-scale factory area.
2. Different mechanisms are provided for fabricating different ess energy storage system .
3. MeriTech Power Co.,Ltd. always puts high quality in the first place. Get an offer! MERITSUN sincerely hope to build up long-term cooperation relationships with every customers by high quality. Get an offer!
