12V / 24V LiFePO4 Battery (Replace of SLA Series)
Home  > new category  > 12V / 24V LiFePO4 Battery (Replace of SLA Series)  >

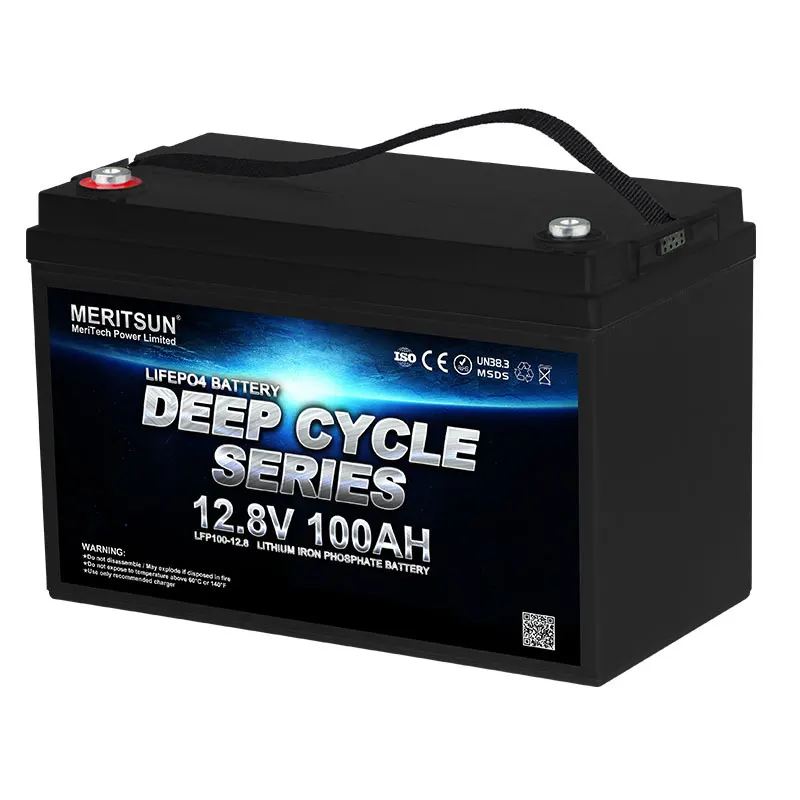

10 Years Warranty Buit-in Smart BMS Lifepo4 Battery 12v 100ah Lithium ion Battery Pack

10 Years Warranty Buit-in Smart BMS Lifepo4 Battery 12v 100ah Lithium ion Battery Pack

10 Years Warranty Buit-in Smart BMS Lifepo4 Battery 12v 100ah Lithium ion Battery Pack

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Details




Electrica
Characteristics
Nominal Voltage
12.8V
Nominal Capacity
100Ah
125Ah
1280Wh
Internal Resistance
≤150mΩ
Cycle Life
≥4000 cycles @1C 100%DOD
Months Self Discharge
<3%
Efficiency of Charge
100% @0.5C
Efficiency of Discharge
96~99% @1C



Standard Charge
Charge Voltage
14.4±0.2V
Charge Mode
0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)
Charger Current
20A
Max. Charge Current
100A
Charge Cut-off Voltage
15.6V±0.2V

Standard Discharge
Continuous Current
100A
Max. Pulse Current
300A(<10s)
Discharge Cut-off Voltage
10.5V


Environmental
Charge Temperature
0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
Discharge Temperature
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Storage Temperature
0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
Water Dust Resistance
IP56




Mechanical
Cell & Method
26650 4S36P
Plastic Case
ABS
Dimensions (in./mm.)
330*175*215mm
Customized
Weight (lbs./kg.)
11kg (29.983 lbs)
Terminal
T11
Protocol (optional)
SMBus/RS485/RS232
SOC (optional)
LED&Bluetooth

For more information, Please contact us now

You will get the best design solution for FREE !!!
( Just click here , or click on the customer service on the right side)
Company Info

The Company info with regard to 10 Years Warranty Buit-in Smart BMS Lifepo4 Battery 12v 100ah Lithium ion Battery Pack

MERITSUN (JYC Battery Group) With a one of the largest battery manufacturing centers in China, finely tuned for efficiency, strong innovation capability from our R&D team, ISO standard manufacturing processes, effective management, and the awareness of being an industry leader in the supplier of batteries.
JYC&MERITSUN is a leading manufacturer and exporter of Battery.
Our advanced and professional technology, complete production lines, experienced staff and strict corporate system ensure our products quality. We pride ourselves on quality products, service and pricing, and believe that the three aspects are equally important to ensure the long-term success of overseas purchasing program.
JYC&MERITSUN 18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery, Lithium Polymer Battery, Lithium iron Phosphate Battery Production Advantages:
♦ Vertical industry chain brings outstanding cost advantages.
♦ Strict quality control system from raw material to production and finished goods, each process has at least one to inspect.
♦ Advanced Technology in assembling battery packs ensures each pack has precise conformance and a stable performance.
♦ Integrated and serial product to meet different customers' needs.
♦ Market-oriented research and develop ensure the upcoming products meet customer demands.

Readmore....

1. An excellent team which is experienced with market and has strong techni-cal capability to customize cost effective.
2. Cleaner production enterprise in China.
3. OEM/ODM services backed by nearly 20 years' R&D experience.

Readmore...


For more information, Please contact us now.
You will get the best design solution for FREE !!!
( Just click here , or click on the customer service on the right side)
Technology

The Technology info with regard to 10 Years Warranty Buit-in Smart BMS Lifepo4 Battery 12v 100ah Lithium ion Battery Pack

The Factors of Quality Guarantee for 18650 Battery, Lithium Battery, Lipo Battery,
Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
(First-class quality management system, Professional technical form.)

JYC&MERITSUN Lithium Battery BMS / PCB / PCM.

Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. JYC&MERITSUN test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.

BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.

For more information, Please contact us now

You will get the best design solution for FREE !!!
( Just click here , or click on the customer service on the right side)
Solutions

The Applied Scope (Industry Solutions) with regard to 10 Years Warranty Buit-in Smart BMS Lifepo4 Battery 12v 100ah Lithium ion Battery Pack

JYC&MERITSUN has the proven solution.
JYC&MERITSUN already provides security and stable to millions of users as a global.

Readmore...

> Wind-Solar Energy Storage system           > Solar street lights                          >Off-grid energy storage
> Household energy storage                          > Telecom backup system              > Mobile base stations
> Emergency backup energy sources           > Uninterruptible power system    > Grid load shifters
> Electric Golf Car                                             > Electric vehicles                            > Electric motorcycles
> Electric forklifts                                              > Electric boats, etc...

For more information, Please contact us now
You will get the best design solution for FREE !!!
( Just click here , or click on the customer service on the right side)
Packaging

The Packaging with regard to 10 Years Warranty Buit-in Smart BMS Lifepo4 Battery 12v 100ah Lithium ion Battery Pack

For more information, Please contact us now

You will get the best design solution for FREE !!!
( Just click here , or click on the customer service on the right side)
MeriTech Power Co.,Ltd. introduced advanced production equipment and other facilities to make sure high quality of battery solutions. It is produced in strict accordance with the UL standard. MeriTech Power Co.,Ltd. incorporates production, sells and after-sale service and technical support to meet all kinds of needs of its customers. It is produced in strict accordance with the UL standard.
MeriTech Power Co.,Ltd. is committed to providing the highest level of service for you. Our friendly and customer-focused employees are always pleased to help you with any questions you might have.
