MeritSun Patented Design All-in-One Power Energy System 6KW-5KWH, 8KW-10KWH,8KW-20KWH,12KW-30KWH With Split Phase Inverter

MeritSun Patented Design All-in-One Power Energy System 6KW-5KWH, 8KW-10KWH,8KW-20KWH,12KW-30KWH With Split Phase Inverter

Model
LPF200-48/51.2
Rated Voltage (V)
48/51.2V
Rated Capacity (Ah)
200Ah
Supply Ability
5000
MOQ
1
Payment
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Certificate
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:


Battery Specifications
Model NO.
 LFP100-48/51.2
LFP200-48/51.2
Nominal Parameters
Voltage
48V/51.2V
48V/51.2V
Capacity
100Ah
200Ah
Energy
4.8/5.12KWh
9.6/10.24KWH
Dimensions(L*W*H)
470*700*260mm
470*700*260mm*2
Design life time(25℃)
20years
20years
Life cycles(80% DOD,25℃)
8000 Cycles
8000 Cycles
Storage tiome/temperature
5 moths @ 25℃;3 moths @ 35℃;1 moths @ 45℃
Operation temperature
-20℃ to 60℃ @ 60±25 Relative Humidity
Storage temperature
0℃ to 45℃ @ 60±25 Relative Humidity
Lithium battery standard
IEC62619,UN38.3,ROHS,CE- EMC,UL 1642,MSDS
Enclosure protection rating
IP52
Electrical Parameters
Operation voltage
48Vdc/51.2Vdc
Max. charging voltage
54Vdc/57.6Vdc
Cut-off discharge voltage
40.5Vdc/43.2Vdc
Max. charge and discharging current
100A


Inverter Specifications
Model NO.
R5KH1
Max. Input Power
6.5KW
Start-up voltage
120V
Max. PV voltage
550V
MPPT range/nominal
125V-500V /360V
Max. input current
12A
MPPT tracker/strings
4/1
AC output
Rated power
5KVA
Max. output current
21.7A
Nominal voltage/range
230V /176Vac~270Vac
Frequency
50 /60Hz
PF
0.99lagging- 0.99leading
THDI
<3%
AC output topology
L+N+PE
Battery
Battery voltage range
 85V~400V
Capacity Of Battery
6.6~66 kWh
Charge current
63 A / 63 A
Discharge current
80 A / 80 A
Battery type
lithium /Lead-acid
Communication interface
CAN/RS485
Features
Display
 LCD
Interface:RS485/wifi/ca n/drm
RS485/wifi/can/drm
Certifi cates
CE, TUV

Products Description

Security

Backup Protection

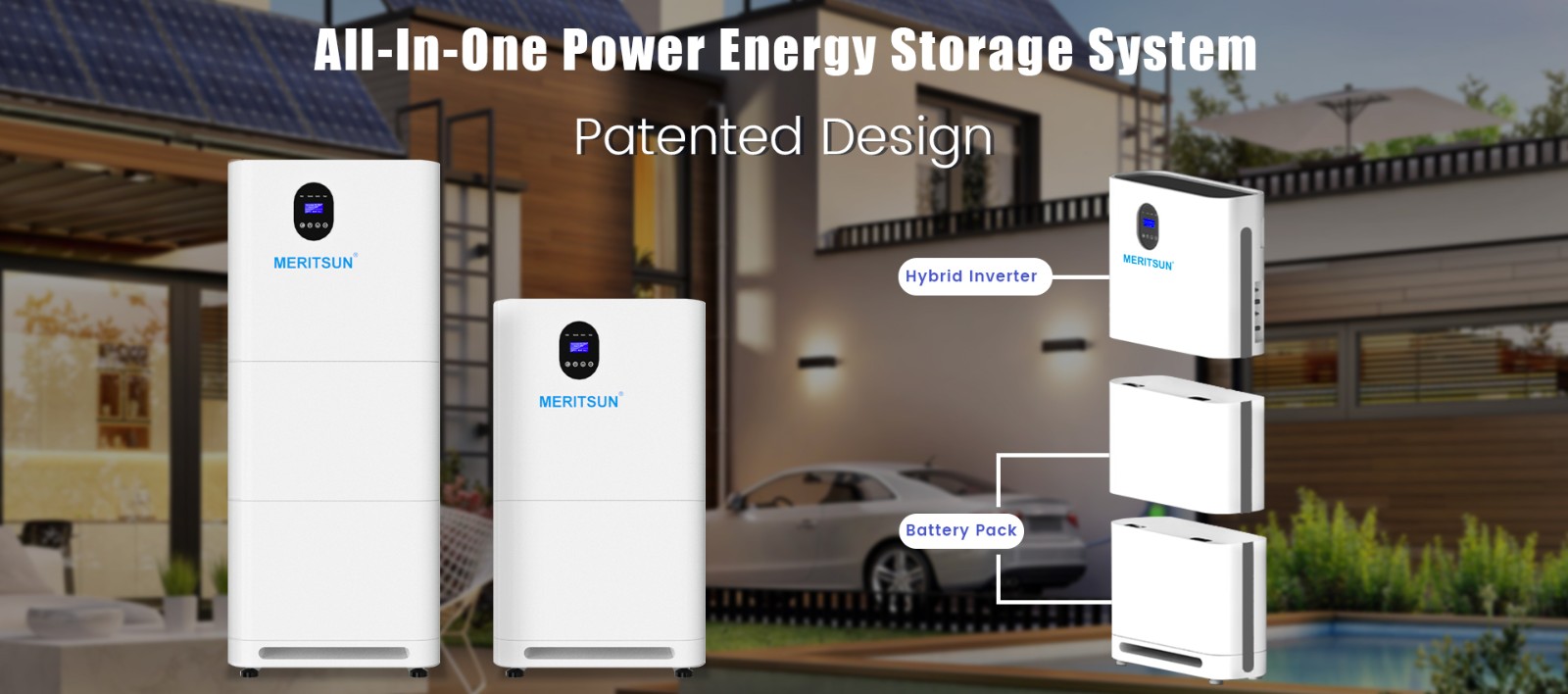

MeritSun All in one System is an integrated battery system that stores your solar energy for backup protection, so when the grid goes down your power stays on. Your system detects outages and automatically recharges with sunlight to keep your appliances running for days.
Independence
Power Everything
Every solar purchase includes MeritSun All in one energy storage system, a compact home battery that reduces your reliance on the grid by storing your solar energy for use when the sun isn't shining. You can add additional Battery units to your order to further lower your carbon footprint and to prepare your home for power outages
