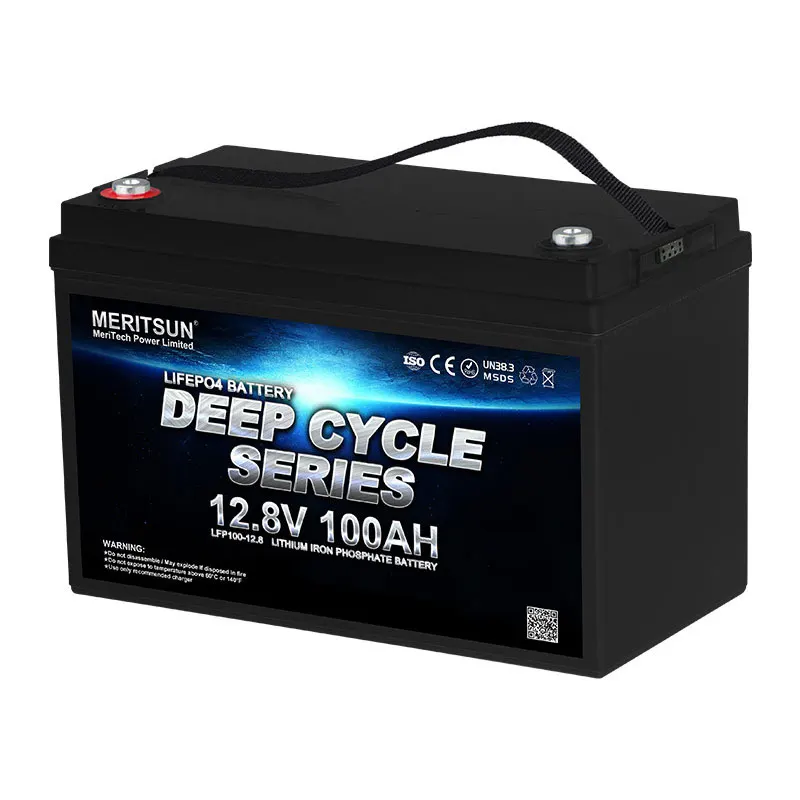

Nominal Voltage Deep Cycle Lifepo4 Battery Lithium 12v 100ah Lithium ion Battery

Nominal Voltage Deep Cycle Lifepo4 Battery Lithium 12v 100ah Lithium ion Battery

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Nominal Voltage Deep Cycle Lifepo4 Battery Lithium 12v 100ah Lithium ion Battery





Product Details



 The battery performance can be customized, the following data for reference:



Electrical

Characteristics

Nominal Voltage

12.8V

Nominal Capacity

100Ah

Energy

1280Wh

Internal Resistance

≤150mΩ

Cycle Life

≥4000 cycles

Months Self Discharge

<3%

Efficiency of Charge

100% @0.5C

Efficiency of Discharge

96~99% @1C

Standard Charge

Charge Voltage

14.6±0.2V

Charge Mode

0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)

Charger Current

150A

Max. Charge Current

150A

Charge Cut-off Voltage

15.6V±0.2V

Standard Discharge

Continuous Current

150A

Max. Pulse Current

350A(<10s)

Discharge Cut-off Voltage

10.5V

Environmental

Charge Temperature

0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity

Discharge Temperature

-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity

Storage Temperature

0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity

Water Dust Resistance

IP56

Mechanical

Cell & Method

26650 4S58P

Plastic Case

ABS

Dimensions (in./mm.)

330*175*215mm / Customized

Weight (lbs./kg.)

11kg (55.12 lbs)

Terminal

T11

Protocol (optional)

/

SOC (optional)

/









The Product Feature, please refer to:





.

Company Info



The Company info with regard to Nominal Voltage Deep Cycle Lifepo4 Battery Lithium 12v 100ah Lithium ion Battery











JYC With a one of the largest battery manufacturing centers in China, finely tuned for efficiency, strong innovation capability from our R&D team, ISO standard manufacturing processes, effective management, and the awareness of being an industry leader in the supplier of batteries.



JYC is a leading manufacturer and exporter of Battery.

Our advanced and professional technology, complete production lines, experienced staff and strict corporate system ensure our products quality. We pride ourselves on quality products, service and pricing, and believe that the three aspects are equally important to ensure the long-term success of overseas purchasing program.







-----------------------------------------------------------------------------------------------------------------------------------------------------

JYC 18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery, Lithium Polymer Battery, Lithium iron Phosphate Battery Production Advantages:



Vertical industry chain brings outstanding cost advantages.
Strict quality control system from raw material to production and finished goods, each process has at least one to inspect.
Advanced Technology in assembling battery packs ensures each pack has precise conformance and a stable performance.
Integrated and serial product to meet different customers' needs.

Market-oriented research and develop ensure the upcoming products meet customer demands.

-----------------------------------------------------------------------------------------------------------------------------------------------------








           1. An excellent team which is experienced with market and has strong techni-cal capability to customize cost effective.

           2. Cleaner production enterprise in Guangzhou, China.

           3. OEM/ODM services backed by nearly 20 years' R&D experience.



















For more information, Please contact us now
You will get the best design solution for FREE !!!
( Just click here , or click on the customer service on the right side)









Technology



The Technology info with regard to Nominal Voltage Deep Cycle Lifepo4 Battery Lithium 12v 100ah Lithium ion Battery





-----------------------------------------------------------------------------------------------------------------------------------------------------









The Factors of Quality Guarantee for 18650 Battery, Lithium Battery, Lipo Battery,

Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery, Lithium Polymer Battery,

Lithium iron Phosphate Battery

(First-class quality management system, Professional technical form.)













JYC Lithium Battery BMS / PCB / PCM







Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. JYC test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.



BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.









Solutions



The Applied Scope (Industry Solutions) with regard to Nominal Voltage Deep Cycle Lifepo4 Battery Lithium 12v 100ah Lithium ion Battery





-----------------------------------------------------------------------------------------------------------------------------------------------------







JYC has the proven solution. JYC already provides security and stable

to millions of users as a global.







> Wind-Solar Energy Storage system        > Solar street lights                         > Off-grid energy storage

> Household energy storage                     > Telecom backup system                > Mobile base stations
> Emergency backup energy sources       > Uninterruptible power system        > Grid load shifters

> Electric Golf Car                                     > Electric vehicles                            > Electric motorcycles

> Electric forklifts                                       > Electric boats, etc





Packaging



The Packaging with regard to Nominal Voltage Deep Cycle Lifepo4 Battery Lithium 12v 100ah Lithium ion Battery













For more information, Please contact us now
You will get the best design solution for FREE !!!
( Just click here , or click on the customer service on the right side)





















Our factory integrates production, packaging and sales into an integrated production line, with complete product specifications, stable and reliable quality. Its long cycle life with over 2000 cycles helps owners reduce replacement cost. MERITSUN has been attaching great importance to the battery solutions quality assurance to serve customers. Its long cycle life with over 2000 cycles helps owners reduce replacement cost.
MeriTech Power Co.,Ltd. is committed to providing the highest level of service for you. Our friendly and customer-focused employees are always pleased to help you with any questions you might have.
