MERITSUN, the Best Lithium Energy Solution Provider.

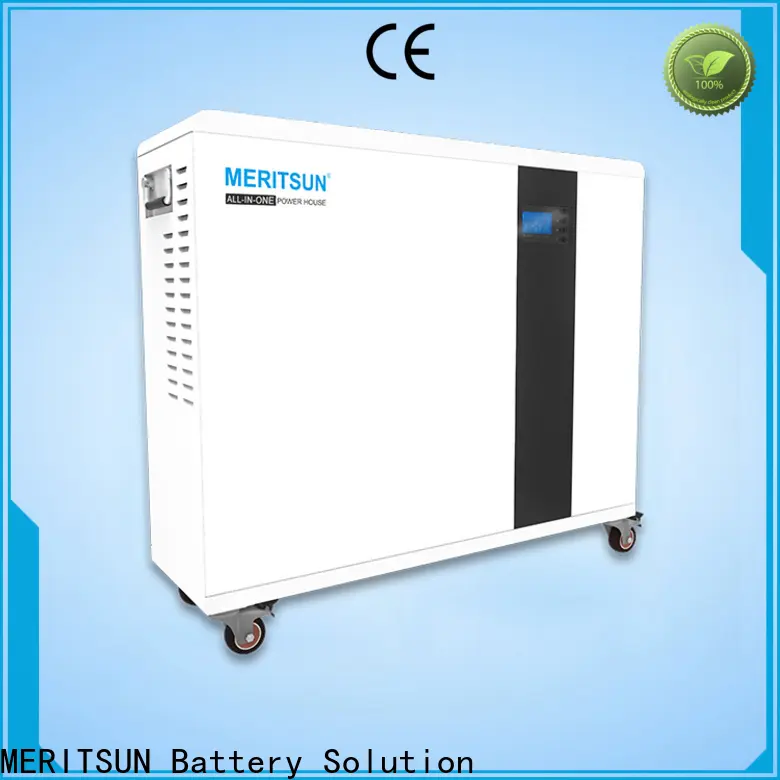

MERITSUN energy saving home battery backup manufacturer for home appliances 1

MERITSUN energy saving home battery backup manufacturer for home appliances 2

MERITSUN energy saving home battery backup manufacturer for home appliances 3

MERITSUN energy saving home battery backup manufacturer for home appliances 4

MERITSUN energy saving home battery backup manufacturer for home appliances 5

MERITSUN energy saving home battery backup manufacturer for home appliances 6

MERITSUN energy saving home battery backup manufacturer for home appliances 7

MERITSUN energy saving home battery backup manufacturer for home appliances 8

MERITSUN energy saving home battery backup manufacturer for home appliances 9

MERITSUN energy saving home battery backup manufacturer for home appliances 10

MERITSUN energy saving home battery backup manufacturer for home appliances

Model:

48V 100Ah (5KWH) battery

Rated Voltage (V):

48V

Rated Capacity (Ah):

100AH

Supply Ability:

5000 Pieces per Month

MOQ:

Payment:

L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal

Approx Dimension (mm):

450*350*805mm

Approx Weight (Kg):

60kg

Certificate:

ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on

Please:

Click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.

Inquiry

Company Advantages
1. lithium ion home battery is designed and developed in tandem with industry norms and standards. It has passed the certification of TLC, TUV, RoHS, and so on
2. The market share of the product is getting increasingly larger, showing its wide market application.
3. home battery backup is made from excellent materials and is processed by special technology. It has superior corrosion resistance and excellent electrical conductivity. It is a high-quality product that can be used for a long time.
4. Made from superior materials, home battery backup has the advantages of large capacity, high power, low self-discharge rate, good temperature resistance, etc. It can not only support the equipment for a long time, but also can be recycled many times.
5. home battery backup is equipped with high-quality battery pack. With large battery capacity, it can be used for a long time. Moreover, the superior terminals makes it excellent in conductivity and effective in power consumption reduction.

MERITSUN energy saving home battery backup manufacturer for home appliances 11

Feature

1.Built in Inverter and Smart BMS.Save installation time and labor.
2.WiFi App Management Optional.
3.Longer Cycle Life:6000 Cycle Life @80%DOD.
                                   4.Easy to move with wheels.Compact and portable design,indoor and outdoor workable.
                              5.Triple input:Solar energy charging;Utility Grid charging and Diesel Engine charging.
ModelsAI 3KAI 5K
Models
Nominal Voltage [V]51.2
Voltage Range [V]44.8~57.6
Capacity3KWH5KWH
Max.discharge rate0.7C0.7C
Max.charge rate0.5C0.5C
Battery TypeLiFePO4 Battery
AC Output
Rated Power3000VA 5000VA
Overload Capacity120% (5s)
200% (100ms)
Output Voltage230Vac±2%
Output Current13.7 A13.7 A
Rated Frequency50/60Hz
VTHD3%
Transfer Time ＜10ms
Output WavePure Sine Wave
Output TypeOutput Type
AC Input Voltage Range170~280Vac
AC Input Frequency50Hz/60Hz
Max AC Charge Current(Battery)40A 60A
PV Input
Max. PV  Power(Recommended)3000w4000w
Max. PV Voltage145V
Max PV Charge Current(Battery)60A80A
Operating Conditions
Operating Temperature 0~55℃
Storage Temperature-15℃~60℃
Humidity5%~95%
Cooling StrategyFan
Weight [kg]4260
Dimension [W x H x D, mm]700*580*230700*580*230
Enclosure Protection RatingIP31
CommunicationWifi(Remote)
Work Mode
Solar FirstSolar and UPS
Utility First UPS and Backup
Solar—Battery—UtilitySolar—Battery—Utility

Company Features
1. Introduced from abroad, our technology applied in manufacturing home battery backup is our biggest strength.
2. MeriTech Power Co.,Ltd. focuses on spreading the prestige of its brand. Inquire now!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.

Established in 1999, we have 20+ years of energy professional experience and integrated solutions services in energy storage application industrial, and further reach the demands the smart & green energy era.

QUICK LINK

ABOUT US

sOLUTION

Email: sales@meritsunpower.com

Service Hotline: +86-13632226296

Tel: +86-20-3659 5615 / +86-20-3243 9575

Fax: +86-20-3243 9640

Headquarters Address: Yongtai Business Center, B213, Baiyun, Guangzhou

Models	AI 3K	AI 5K
Models
Nominal Voltage [V]	51.2
Voltage Range [V]	44.8~57.6
Capacity	3KWH	5KWH
Max.discharge rate	0.7C	0.7C
Max.charge rate	0.5C	0.5C
Battery Type	LiFePO4 Battery
AC Output
Rated Power	3000VA	5000VA
Overload Capacity	120% (5s)
	200% (100ms)
Output Voltage	230Vac±2%
Output Current	13.7 A	13.7 A
Rated Frequency	50/60Hz
VTHD	3%
Transfer Time	＜10ms
Output Wave	Pure Sine Wave
Output Type	Output Type
AC Input Voltage Range	170~280Vac
AC Input Frequency	50Hz/60Hz
Max AC Charge Current(Battery)	40A	60A
PV Input
Max. PV Power(Recommended)	3000w	4000w
Max. PV Voltage	145V
Max PV Charge Current(Battery)	60A	80A
Operating Conditions
Operating Temperature	0~55℃
Storage Temperature	-15℃~60℃
Humidity	5%~95%
Cooling Strategy	Fan
Weight [kg]	42	60
Dimension [W x H x D, mm]	700580230	700580230
Enclosure Protection Rating	IP31
Communication	Wifi(Remote)
Work Mode
Solar First	Solar and UPS
Utility First	UPS and Backup
Solar—Battery—Utility	Solar—Battery—Utility
